Steel Doors and Fire-Rated Steel Doors

Fire-rated steel doors (fire emergency exit doors) by PCJ are constructed of steel sheets with advance technique of reinforcement to be very strong (heavy duty). The doors have been tested and certified by Underwriter Laboratories (UL), USA, for 3-hour fire rating as per ANSI/UL 10C & CAN/ULC-S104. A variety of types and styles of our doors are available upon request to fulfill most requirements, for example,

Single door leaf, Double door leaf
Flush style, Flush with vision panel style
Embossed style
Powder finish, Wood grain finish

Moreover, we also supply a plenty of types of door hardware upon request.

Our doors are made to order. Sizes are available upon request up to maximum 1200 mm. X 2400 mm. for single door and 2400 mm. X 2400 mm. for double door. We recommend application of our doors for not only fire escape purpose, but also any other where fire/burglar protection are needed.

We also manufacture and supply 2-hour fire rated door, tested by Chulalongkorn University in accordance with BS476 and TIS (Thai Industrial Standards) 1220-2541 as well as steel door as per TIS 1288-2538 to fulfill most requirements.

Product Gallery

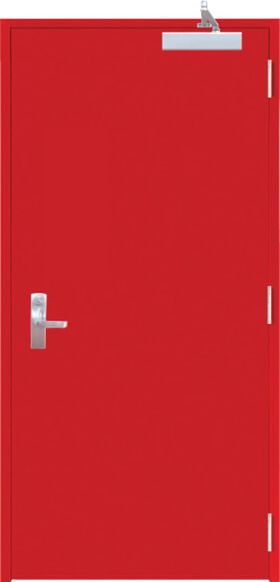

Single Door Leaf

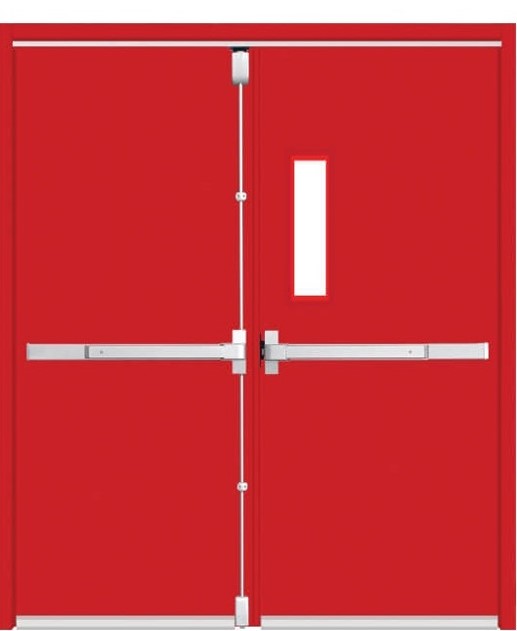

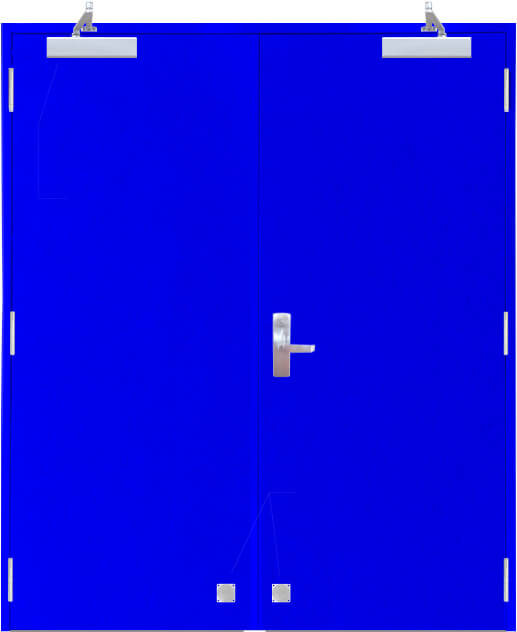

Double Door Leaf

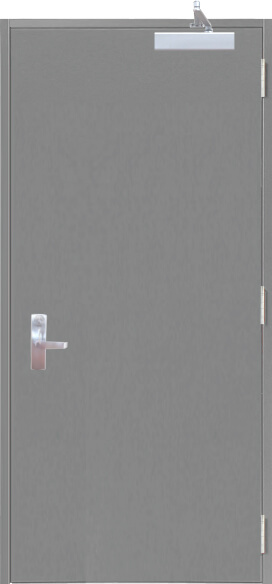

Flush Style

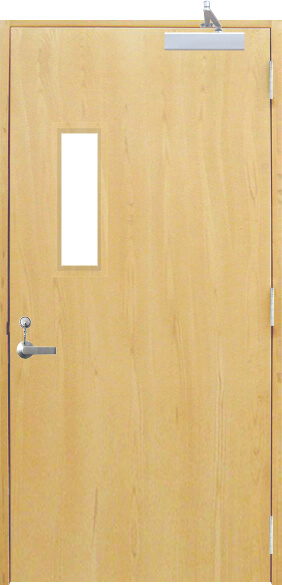

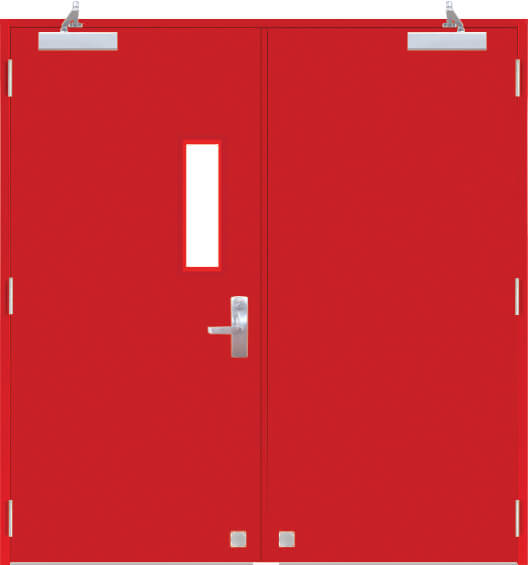

Flush with Vision Panel Style

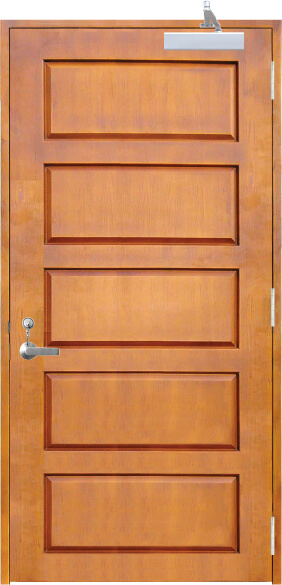

Embossed Style, 5 Panels

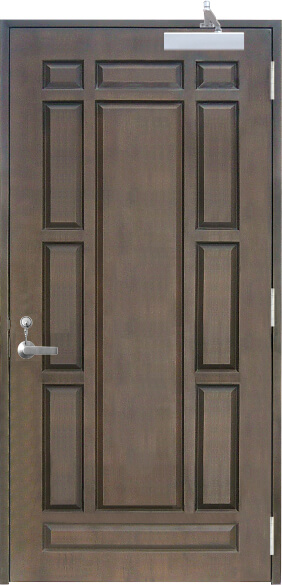

Embossed Style, 11 Panels

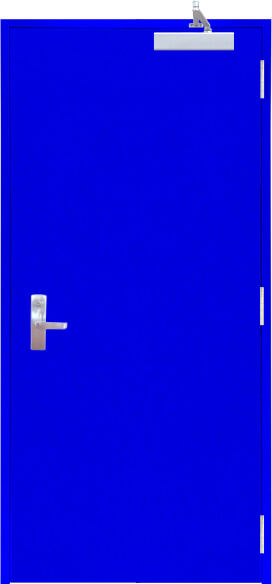

Powder Finish

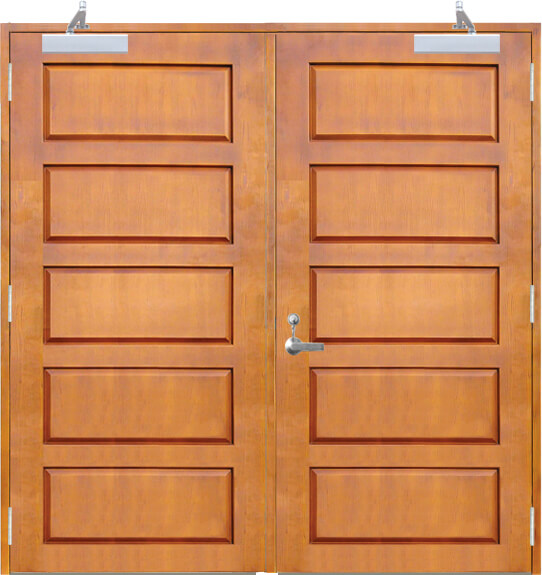

Wood Grain Finish

Door Hardware

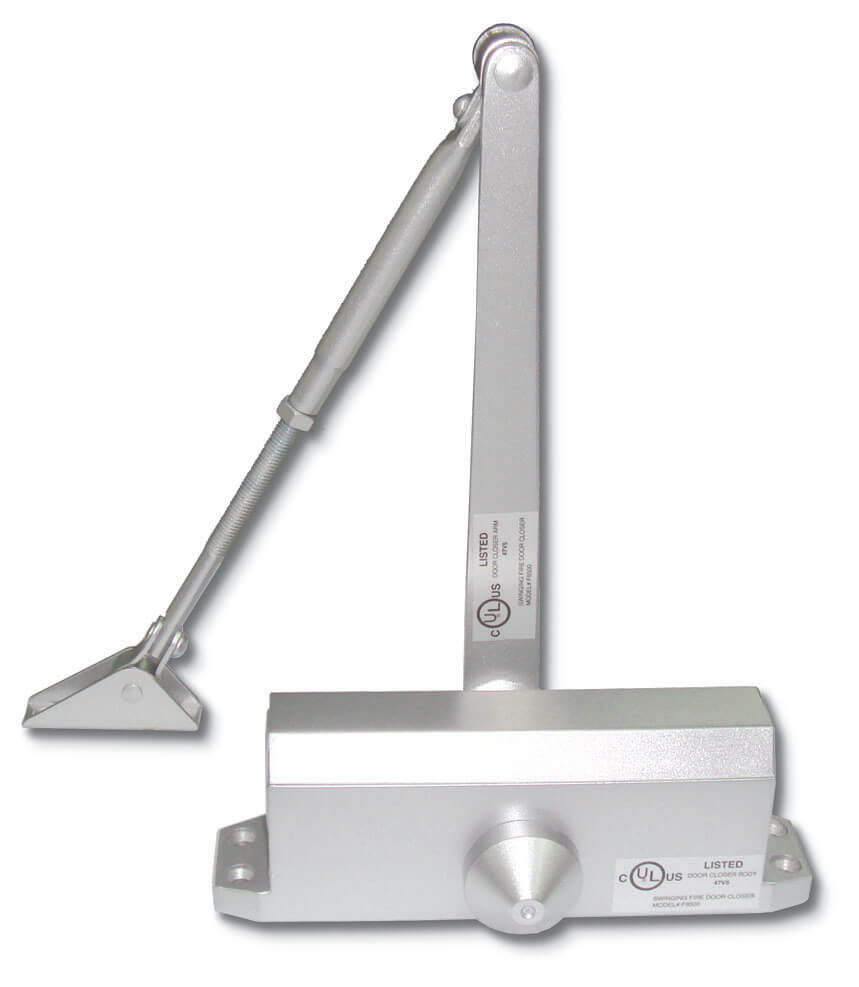

Swinging Fire Door Closer

Surface Mounted
Non-Hold Open, Regular Arm
Can be opened 180°
For door leaf weight 60-85 Kgs
3-Hour Fire Rating, UL 10C

Swinging Fire Door Closer, Heavy Duty

Surface Mounted
Non-Hold Open, Regular Arm
Can be opened 180°
For door leaf weight 15-150 Kgs
3-Hour Fire Rating, UL 10C
ANSI Grade 1

Escutcheon Lever Trim with Cylinder

To be used in combination with exit device

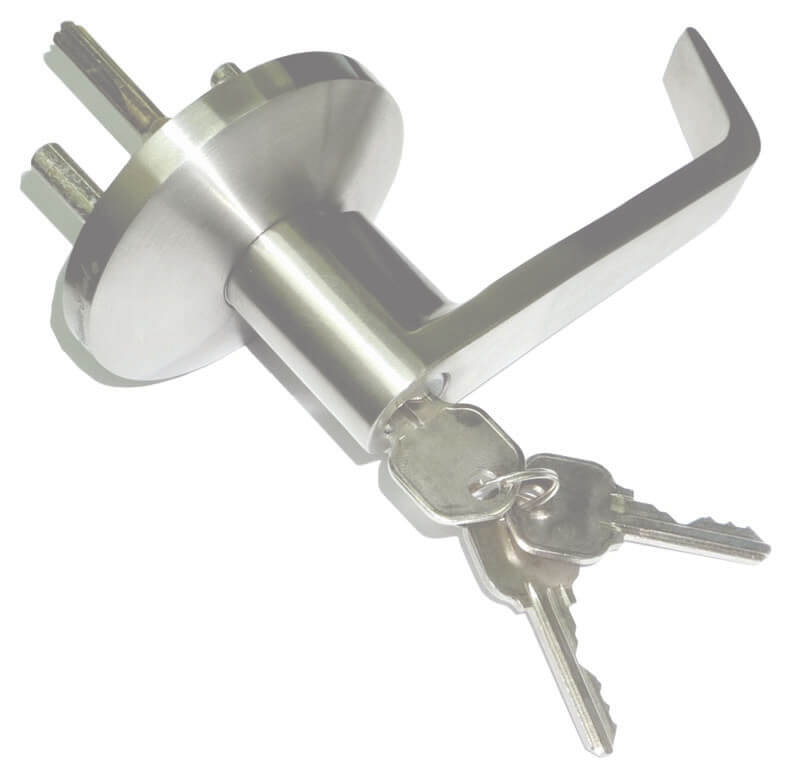

Lever Trim with Cylinder

To be used in combination with exit device

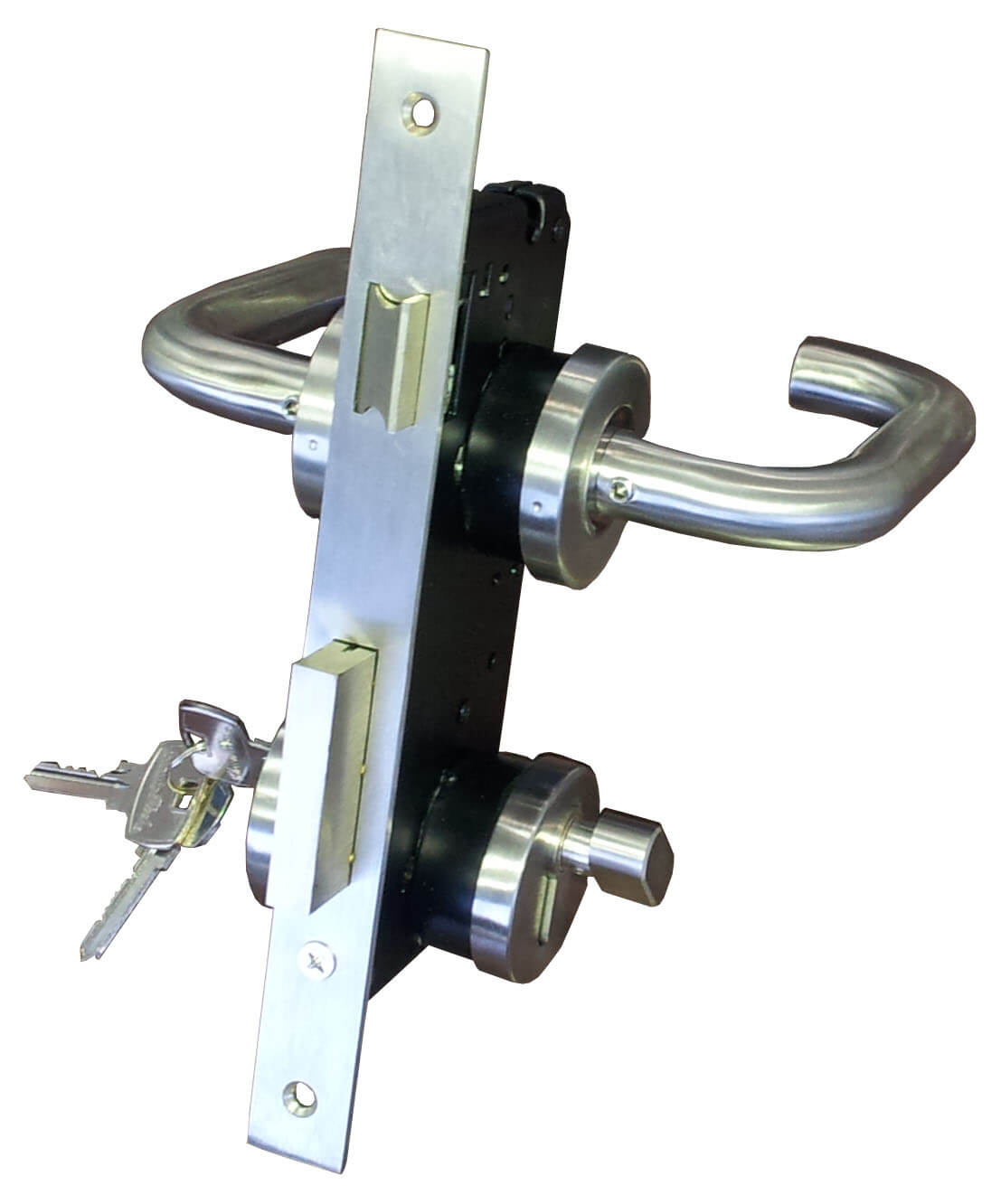

Fire Mortise Lock, Cylinder with Thumbturn

3-Hour Fire Rating, UL 10C

Mortise Lock, Cylinder with Thumbturn

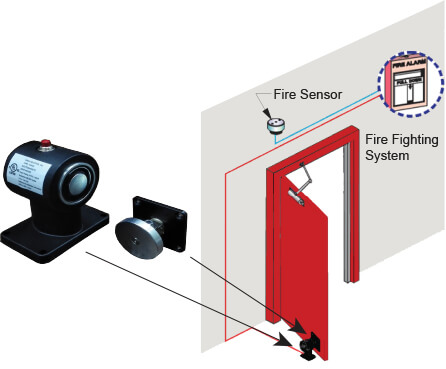

Electromagnetic Door Holders

Floor Mounted
UL 228

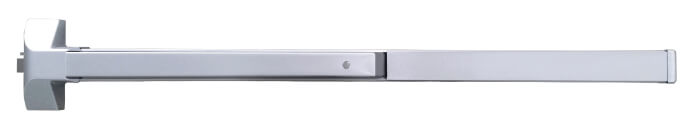

Fire Exit Device, Rim Type

3-Hour Fire Rating, UL 10C

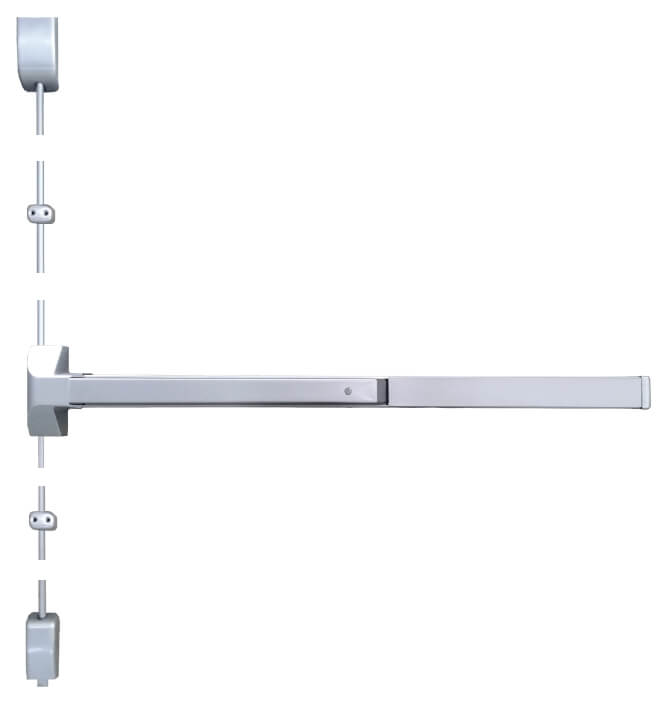

Fire Exit Device, Vertical Rod Type

3-Hour Fire Rating, UL 10C

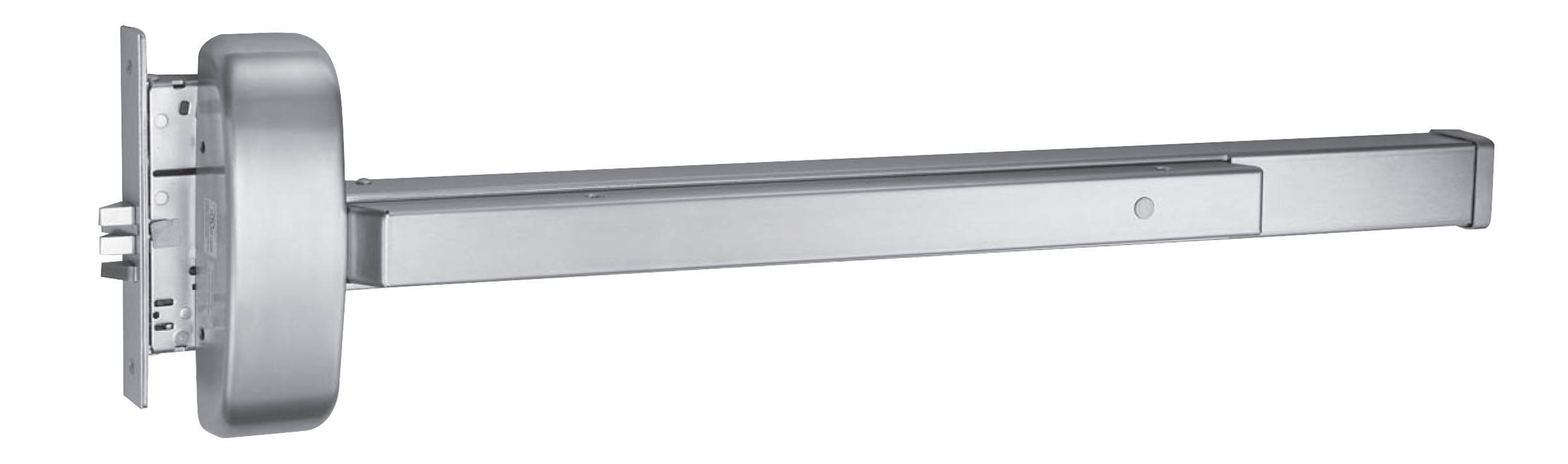

Fire Rated Mortise Exit Device

3-Hour Fire Rating, UL 10C

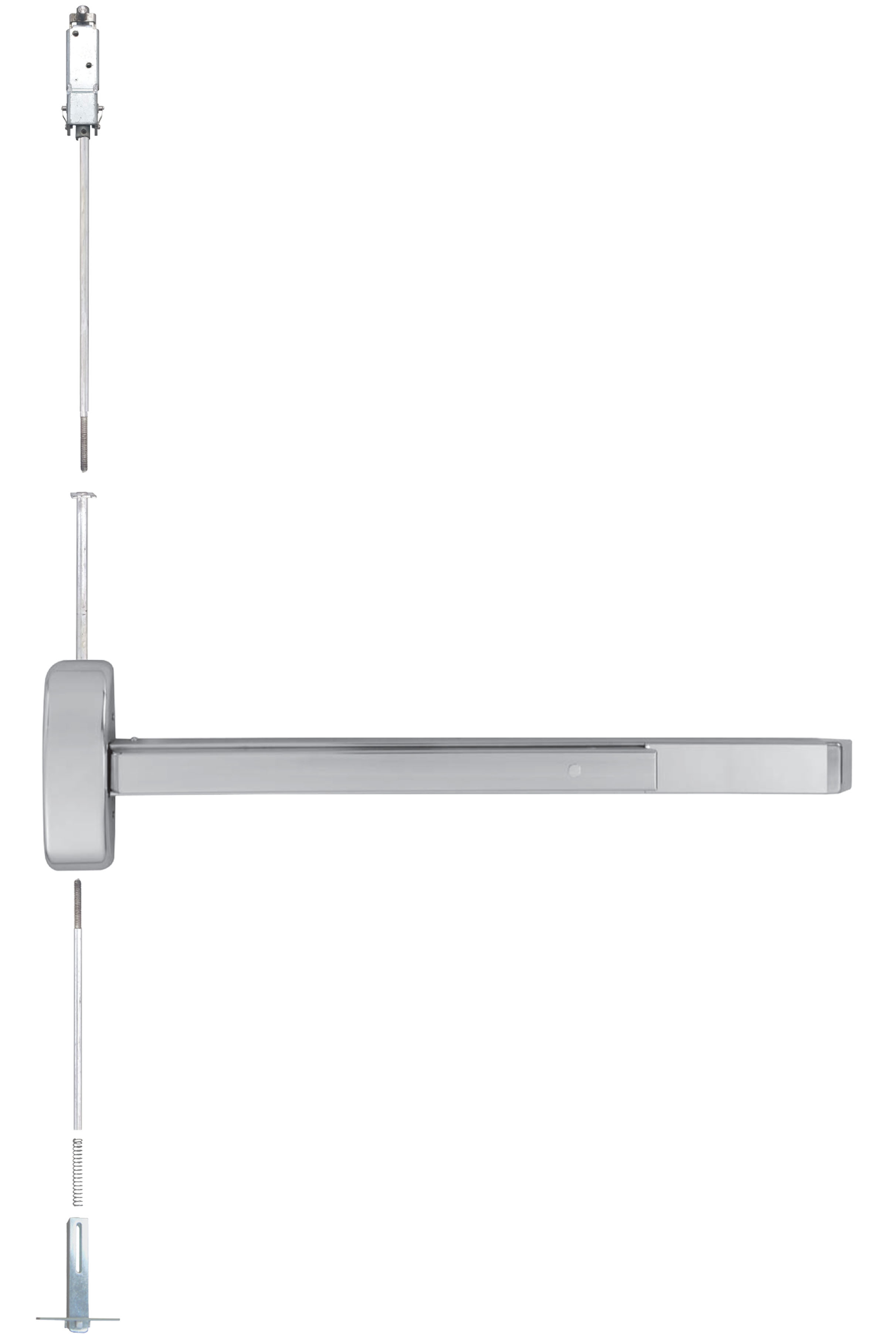

Fire Rated Concealed Vertical Rod Exit Device

3-Hour Fire Rating, UL 10C

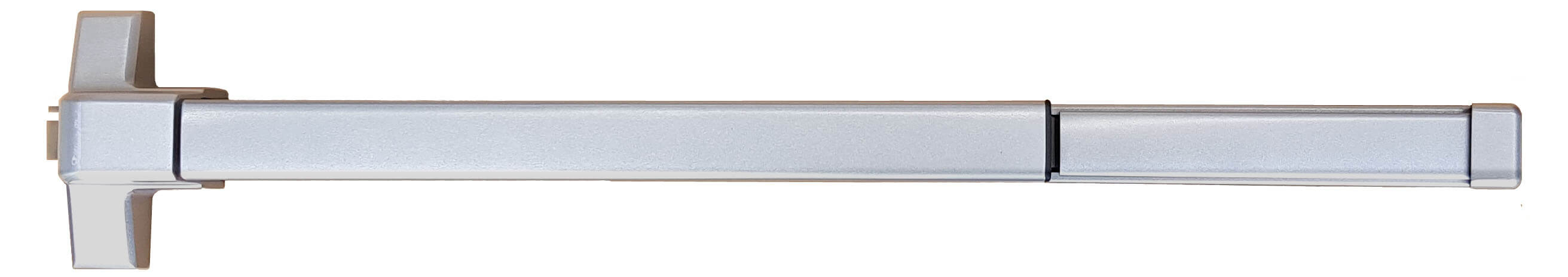

Panic Exit Device, Rim Type

Panic Rating, UL 305

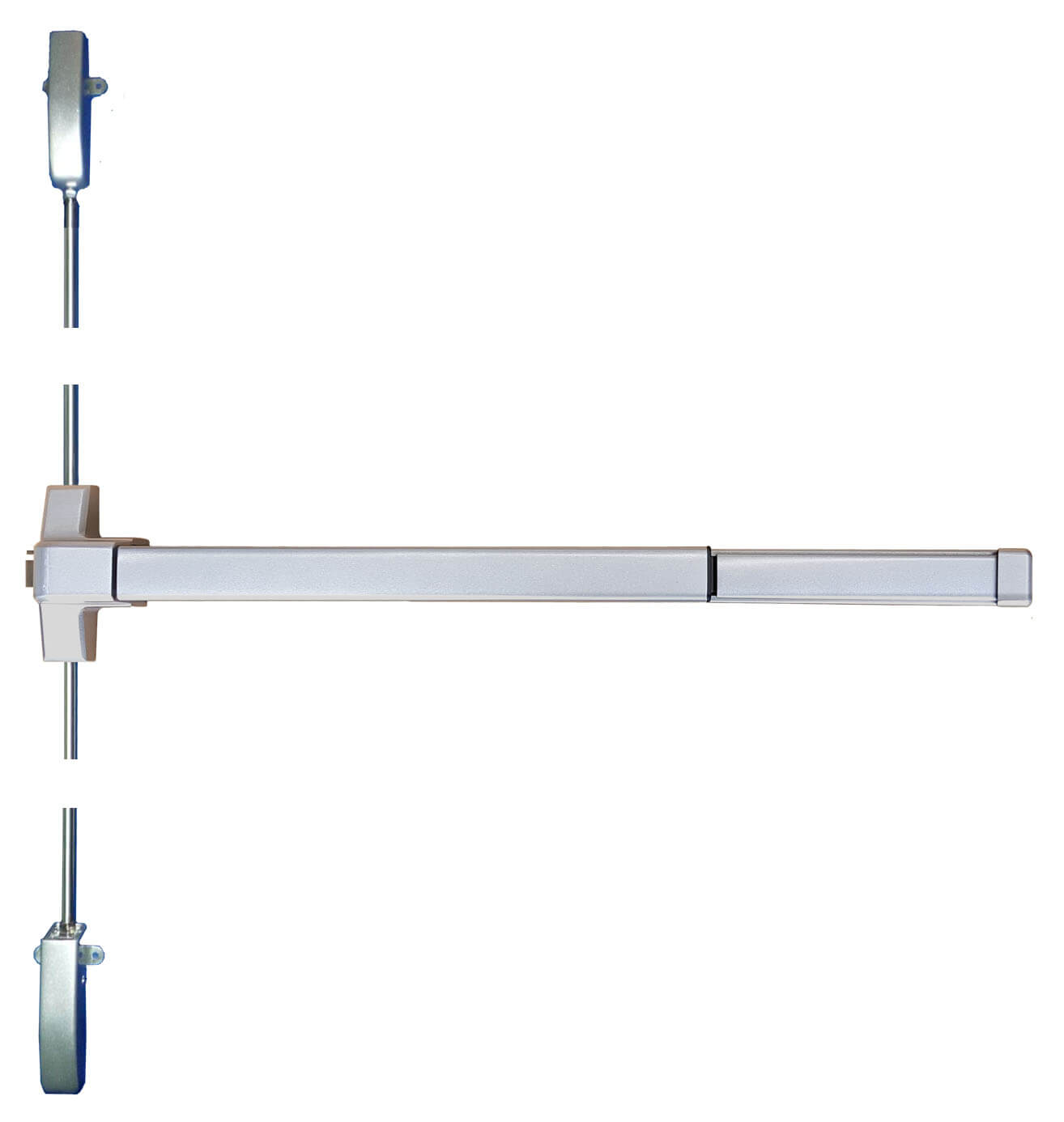

Panic Exit Device, Vertical Rod Type

Panic Rating, UL 305

Smoke Seal

3-Hour Fire Rating, UL 10C

BB Hinge

Stainless Steel, Grade 304
3-Hour Fire Rating, UL 10C

Automatic Door Bottom Seal

The seal automatically comes out to close the gap beneath the door leaf when the door leaf is completely closed, and automatically retract when the door starts to be opened.
3-Hour Fire Rating, UL 10C
